Product concept
Simply put, when the normal power supply fails, it can automatically and quickly switch the load to the backup power supply
to ensure continuous power supply to the load; when the normal power supply returns to normal,
it can automatically switch the load back to the normal power supply.
Characteristic
Automatic power switching:
The core function of the ATS cabinet is to realize automatic switching between normal power supply and backup power supply.
It can monitor the status of the two power supplies in real time. Once it detects that the normal power supply has a power failure,
overvoltage, undervoltage or phase loss, it will immediately send a switching signal to switch the load to the backup power supply.
The switching time is usually more than tens of milliseconds. For most loads, this time is short enough and will not affect the load.
Multiple working modes:
ATS cabinets support multiple working modes, including automatic mode, manual mode and remote control mode.
In automatic mode, the ATS cabinet will automatically switch the power supply according to the preset logic; in manual mode,
users can manually switch the power supply through the buttons on the operation panel;
remote control mode allows users to remotely control the power switching of the ATS cabinet through the network or other communication methods.
Status monitoring and display:

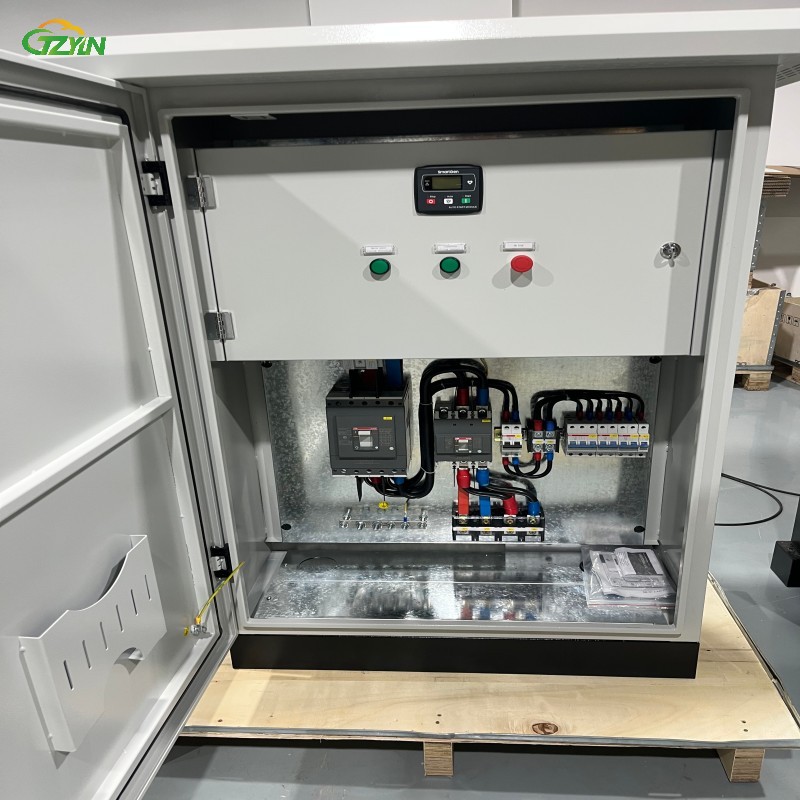

The panel of the ATS cabinet is usually equipped with a display screen or indicator light,
which can display the voltage, current, frequency and other parameters of the two power supplies and the power supply status in real time.
Users can use these display information to understand the operation of the system at any time, and promptly discover and deal with potential problems.
Protection function:
In order to ensure the safety of equipment and loads, the ATS cabinet also has a variety of protection functions,
such as overload protection, short circuit protection, overvoltage protection, undervoltage protection, etc.
When overload, short circuit, overvoltage or undervoltage faults occur in the circuit,
the ATS cabinet will automatically cut off the power supply to avoid equipment damage and safety accidents.
 |
 |
 |
Advantages
High reliability:
220V dual power supply ATS cabinet is mainly used for emergency power supply system, which can ensure automatic and rapid power switching in case of power failure,
so as to ensure the continuous and reliable operation of important loads.
Its mechanical structure and electrical design have been strictly tested and verified, with high reliability and stability.
Intelligent control:
Modern ATS cabinets are usually equipped with intelligent controllers, which can monitor the status of mains power and backup power in real time,
and automatically switch power according to preset logic.
The intelligent controller can also communicate with the host computer through the communication interface to achieve remote monitoring and management.
Flexible operation mode:
ATS cabinet supports multiple operation modes, and users can choose the appropriate operation mode according to actual needs.
For example, in an emergency, manual mode can be selected for rapid switching, and in normal circumstances, automatic mode can be selected for unattended operation.
Simple structure and convenient operation:
The design of ATS cabinet focuses on user experience, with a simple and clear structure and convenient operation.
Even non-professionals can quickly master its use.
Quick switching:
ATS cabinet adopts advanced switching technology, which can complete the switching between power sources in a short time,
thereby minimizing the impact of power outages on loads.
High safety:
The power distribution cabinet uses high-quality electrical components and perfect protection
measures to ensure that no safety accidents will occur during power failure or operation.
Specific help for users
Ensure the operation of critical loads:
For key facilities such as hospitals, data centers, and communication base stations, the continuity of power supply is essential.
The 220V dual-power ATS cabinet can automatically switch to the backup power supply when the mains fails,
ensuring the continuous operation of critical loads and avoiding equipment damage, data loss, and Service interruption caused by power outages.
Reduce maintenance costs:
The intelligent control and automatic switching functions of the ATS cabinet can reduce manual intervention and reduce maintenance costs.
At the same time, its reliable performance and protection functions can extend the service life of the equipment
and reduce the frequency of equipment maintenance and replacement.
Improve power supply quality:
The ATS cabinet can monitor the power supply status in real time and switch to the backup power supply in time when the power supply fails,
thereby improving the reliability and stability of the power supply. In addition, some high-end ATS cabinets also have functions
such as voltage regulation and frequency stabilization, which can further improve the power supply quality.
Easy to manage:
The panel display and communication interface functions of the ATS cabinet allow users to easily understand
the operating status of the system and conduct remote monitoring and management.
This helps to improve management efficiency and promptly discover and solve problems.
Wide application scenarios
Construction field:
High-rise buildings, communities, hospitals, airports, docks and other places have high requirements for the reliability of power supply.
The 220V dual power supply ATS cabinet can provide reliable power guarantee for key loads such as fire-fighting equipment, elevators, and lighting systems in these places.
Industrial field:
In the production process of metallurgy, chemical industry, textile and other industries, many equipment need to run continuously.
Once the power is interrupted, it may cause production accidents and economic losses.
The ATS cabinet can provide backup power for these equipment to ensure the continuity of production.
Data center:
The data center is the core infrastructure of the modern information society and has extremely high requirements for power supply.
The 220V dual power supply ATS cabinet can provide reliable power guarantee for the servers, storage devices, network equipment, etc.
The data center to ensure the security of data and the normal operation of business.
Communication base station:
The communication base station is a key node to ensure the smooth communication network.
Power outages will cause communication interruptions. ATS cabinets can provide backup power for communication base stations to
ensure the stable operation of communication networks.
Choosing a 220V dual power ATS cabinet is choosing a reliable power guarantee Solution
that brings more safety and convenience to your business and life.
